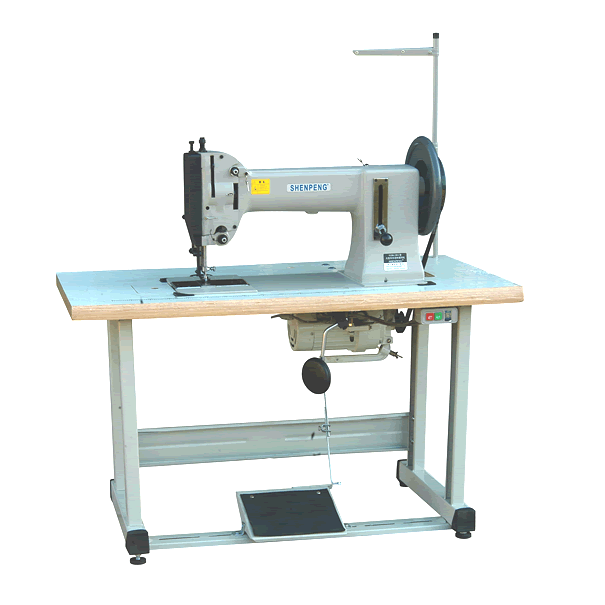

FGB6-180-1大型厚料機，采用單直機針、擺梭勾張、上下復合送料，設有回縫裝置，操作簡便。構成雙線鎖式線跡。由于本機器采用特殊的上送料機構和壓腳交叉提升機構,它除具有一般工業縫紉機的各項性能之外,其優點是對膨體類縫料和潛移性較大的中厚料,在縫紉過程中能使上層和下層送料量達到一致,在高低重疊縫紉和爬坡縫紉時,送料爽、針距穩定、線跡平整而美觀、縫厚料性能好、操作省力等優點，同時還可以按縫紉工藝的特殊要求進行調節，以便上層縫料的送料量和下層縫料的送料量之差達到預期要求,所以能明顯地提高縫紉質量和縫紉效果.
Brief Introduction of product
FGB6-180-1 large sewing machine for thick material adopts single straight needle, oscillating shuttle thread hooking mechanism. upper and lower combined feeding and back sewing unit. It is easy to operate. It forms 2-thread lock stitch. This machine adopts special upper feeding mechanism and presser cross lifting mechanism, besides the various properties same with other general industrial sewing machine, it has advan-tages of same feeding size of upper layer and lower layer when sewing bulked sewing material and medium and thick material with bigger potential moving property; easy to feeding when make high and low over-lap sewing and climbing sewing. It has steady stitch size, smooth and beautiful stitch. It is easy to operate and has steady property when sewing hick material. At the same time, it could be regulated according to special re-quirement of sewing technology, so the difference of feeding size between upper layer and lower layer could achieve the desired requirement, the sewing quality and result could be improved clearly.
二、用途
適用于制鞋、沙發、集裝袋、安全帶、帳篷、皮革等極厚料物品縫制。
Usage
It is suitable for sewing products with super-thick material, such as shoes-making, sofa, containing bag, safety belt, tent and leather.
技術規格 Technical Specifications
|
縫紉速度 800針/分鐘(S/Min）
Speed of sewing |
| 機頭外型 736×270×590mm
Shape of head |
|
針距長度 0～13mm
Length of needling distance |
|
電動機功率 電動機功率0.55千瓦1400轉（縫紉機專用電機）
Power of electric motor 0.55KW1400R/Min(Special purpose electric motor for sewing machine) |
|
壓腳提升高度 手控14mm 腳控22mm
Presser lifting height Manual control 14mm Knee conrol 22mm |
|
操作空間 200×420mm
Operating space |
|
針桿行程 58mm
Travel of needle pole |
