產品介紹

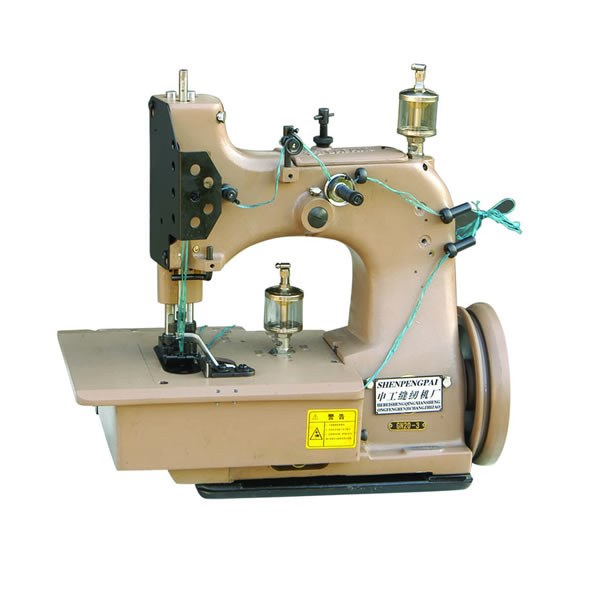

GN20系列包邊機，其中GN20-1適用各種規格的麻袋包縫。GN20-2型適用于生產各種規格的地毯包邊。GN20-3型集裝袋包邊機（鎖邊機）適用于各種規格的集裝袋包縫。
Brief Introduction of product
GN20 series binding machine. GN20-1 is suitable for hemming gunnysacks in different specifications. GN20-2 is suitable for binding carpets in different specifications. GN20-3 type binding machine machine (Overlock machine)for containing bag is suitable for hemming containing bage with different specifications.
技術規格 Technical Specifications
|
縫紉速度 1400針/分鐘(S/Min.)
Speed of sewinG |
| 最大縫紉厚度 14mm
The maximum sewing thickness |
|
最大包邊寬度 19mm
The maximum binding width |
| 針跡調整范圍 3-15 mm
Adjustment range of stitch |
|
機針型號 GN20-230/26～33＃
Model of needle |
|
機頭凈重 35kg
N.W of head section |
|
